Place of Origin:
Zhengzhou City, China
Brand Name:
Lewin Machinery
Certification:
CE certification
Model Number:
6YY-185
Contact Us

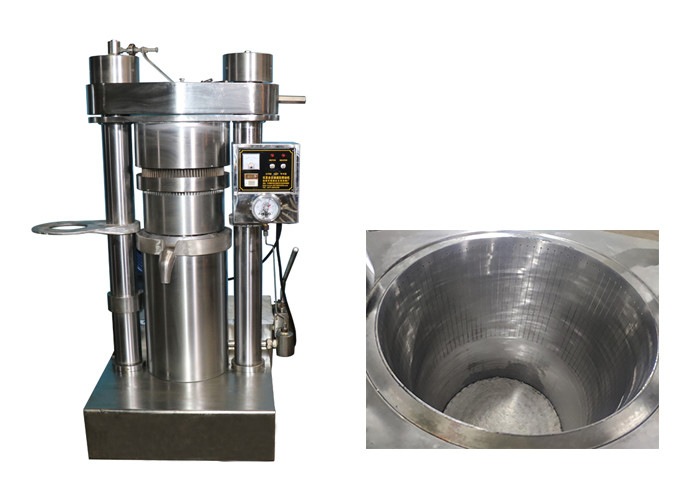

Hydraulic nuts oil pressers 60Mpa factory price widely used
Production advantages
1. Lewin automatic hydraulic oil press machine with advanced manufacture technology, which is economic and environmental protection, and durable performance; It brings High oil yield, pure oil, and no filtration.
2. The pressure is up to 60Mpa,higher than market machines(the normal is 45Mpa to 55Mpa) , provides higher oil yield.
3. Internal temperature control parts to solve the problem of low oil yield in winter (usually the machine's oil yield will be lower in winter) .

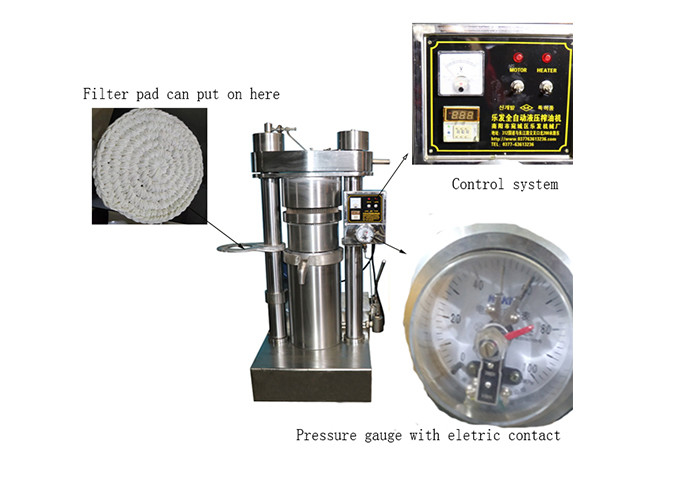

4. The precision instrument panel monitors the temperature and pressure at any time,and operates simply.
Parameters of different models
This hydraulic oil press has a variety of models, according to the demand of production, you can choose the right machine, and contact us for a better quotation
| Model | Pressure | Power/KW | Capacity | Dimension/M | Weight/Kg |
| 6YY-185 | 60Mpa | 1.1 | 4kg /batch | 0.6*0.88*1.15 | 590kg |
| 6YY-230A | 60Mpa | 1.1 | 8.5kg /batch | 0.67*0.95*1.46 | 924kg |
| 6YY-230B | 60Mpa | 1.1 | 9.5kg /batch | 0.67*0.95*1.56 | 950kg |
| 6YY-250 | 60Mpa | 1.1 | 11kg /batch | 0.71*0.95*1.56 | 1070kg |
| 6YY-270 | 60Mpa | 2.2 | 13.5kg /batch | 0.75*1.01*1.64 | 1230kg |
| 6YY-300 | 60Mpa | 2.2 | 16kg /batch | 1*1.1*1.66 | 1600kg |
| 6YY-335 | 60Mpa | 2.2 | 20kg /batch | 1.1*1.24*1.73 | 1750kg |
| 6YY-355 | 60Mpa | 3.0 | 23kg /batch | 1.16*1.2*1.81 |
2350kg |
Operating principle
The operate principle is that you put the oil raw material into the pressing chamber of the hydraulic pressers and close the top plate. It is easy to operate. Turning on the machine, then it being driven up by the oil cylinder piston, the oil will be squeezed out from the oil line as the machine boosts pressure.
Materials
this machine could use for many raw materials like the below picture.
Samples of oil

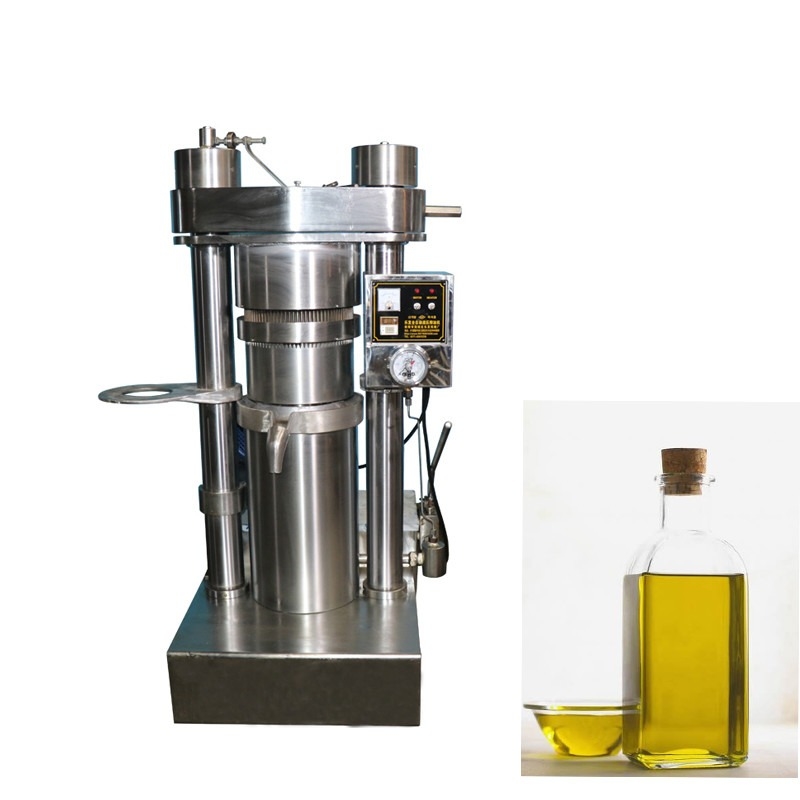

clean oil samples from the hydraulic machine. hot press and cold press are different color.
Why choose us
I. Professional design, production team
