Place of Origin:
China
Brand Name:
Lewin
Certification:
CE ISO
Model Number:
6YY-250
Contact Us

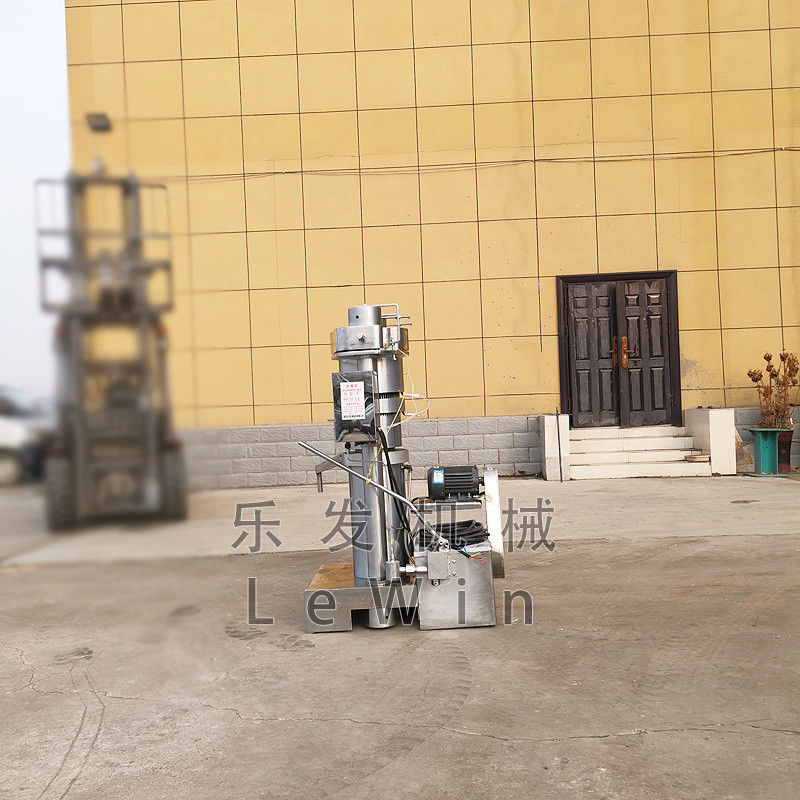

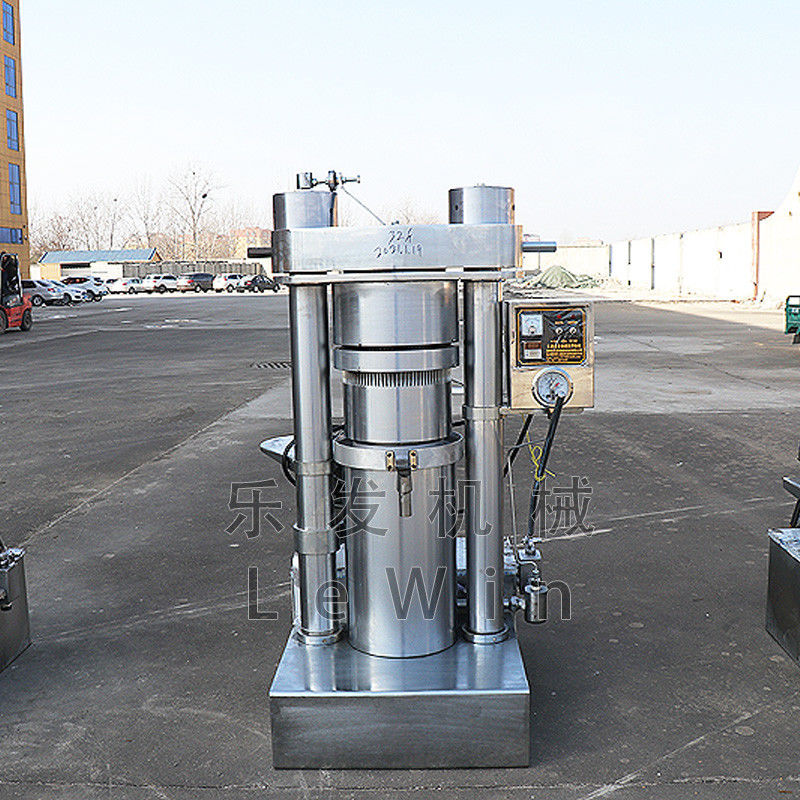

Auto hydraulic cold oil processing device coconut avocado oil expeller price
Basis Information
The hydraulic oil press is the most advanced equipment at present, which can replace the manual operation of sesame oil..
1. Machine steel is purchased directly from steel manufacturing plants, and the material quality is high;
2. We have a top-notch team of engineers and have long-term cooperation with many research institutions to provide customers with satisfactory designs..
3. Our workers are professional, and everyone has undergone rigorous training before starting their jobs;
4. We provide high-quality and perfect after-sales service.
How to work?
The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.
Application for different oil material:
1. It is suitable for direct processing of rape, peanut, sunflower seed, sesame,
palm,almond,perilla,olive and other oil crops.
2. If you want to process other special raw material, please cantact us to ensure.
Technical parameters of oil pressers:
Model | 6YY-185 | 6YY-250 | 6YY-270 | 6YY-300 | 6YY-335 |
Weight | 550kg | 1060kg | 1230kg | 1600kg | 1750kg |
vacuum Power | 1.1kw | 1.1kw | 2.2kw | 2.2kw | 2.2kw |
3phase | 2.2kw | 2.2kw | 4.0kw | 4.8kw | 4.8kw |
Working pressure | 60MPa | 60MPa | 60MPa | 60MPa | 60MPa |
Capacity (Kg/h) | 4kg/batch | 11kg/batch | 13.5kg/batch | 16kg/batch | 20kg/batch |
Dimension(mm) | 600*880*1150 | 710*950*1560 | 750*1010*1640 | 1000*1100*1660 | 1100*1240*1730 |
Residual oil | ≤5% | ≤5% | ≤5% | ≤5% | ≤5% |
If you need larger or smaller capacity, we could offer customization service.
Show details
All the goods will be inspected by our own quality inspection department, through the advanced machine to make sure no problem.
Advantages:
1. professional research and development, complete model, advanced manufacturing technology, beautiful appearance.
2. High oil yield, pure oil, no filtration.
3. The oil is squeezed once, the speed is fast, and the labor intensity is small.
4. It has high pressure, the pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.
Simple operation
The operation is very easy, one person can operte it.
Packing and shipping
We use strong wooden case to ensure the safety of your goods in transit.
Our service
1.Professional engineer
Our professional engineer will test the machine in each step.
2.Before delivery
Every machine carefully adjusted before shipment.
3.After-service
The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
