Place of Origin:
Henan , China
Brand Name:
Lewin
Certification:
ISO CE
Model Number:
6YY- 270
Contact Us
What is our sesame oil presser?
Our sesame oil presser machine is to making edible oil, like mustard oil, sesame oil, peanut oil and other oils.
Applications Materials of our sunflower oil making machine:
Pressed oil by our ses:
How about our sunflower oil making machines' principle?
The sunflower oil making machine used our new supercharged technology and five class safety protection system, offer the enough pressure and keep the machine working safety. High precision structure hydraulic box can over higher pressure. Separately and more perfect oil line technoloty applied, keep the press kettle strong enough and increase the oil rate.
Where can our sunflower oil making machines be used?
1. Pressing oil line:
If you are the oil manufacturer, we can offer you completer line, our machine also is suitable for you.( We also can provide a whole line for you.)
2. Portable pressing oil:
Our sunflower oil making machine take small area, if you need pressing oil and sell it directly, our hydraulic machine also suitable for you. You can take it anywhere you want to go.
Parameter of our sesame oil pressers:
We also have other models for your choose, if you are interested anyone, please contact us freely.
| Model | 6YY-185 | 6YY-230A | 6YY-230B | 6YY-250 | 6YY-270 | 6YY-300 | 6YY-335 | 6YY-355 |
|---|---|---|---|---|---|---|---|---|
|
Capacity (kg/batch) |
4 | 8.5 | 9.5 | 11 | 13.5 | 16 | 20 | 23 |
| Working pressure | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa |
| Weight (kg) | 590 | 924 | 950 | 1070 | 1230 | 1600 | 1750 | 2350 |
|
Power (3 /single phase) |
1.1/2.2 kw | 1.1/2.2 kw | 1.1 /2.2kw | 1.1/2.2 kw | 2.2/4.0 kw | 2.2/4.8 kw | 2.2/4.8 kw | 3.0/5.0 kw |
|
Package Size(m) |
0.78*1*1.58 | 0.78*1*1.58 | 0.78*1*1.68 | 0.78*1.04*1.71 | 0.82*1.081*1.75 | 0.94*1.14*1.81 | 0.94*1.16*1.8 | 1.04*1.24*1.92 |
|
Capacity (Kg/24h) |
190-260 | 500-650 | 600-750 | 650-780 | 800-1000 | 950-1200 | 1100-1400 | 1500-2000 |
| Oil cake diameter | 185mm | 230mm | 230mm | 250mm | 270mm | 300mm | 335mm | 355mm |
| Residual oil | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |

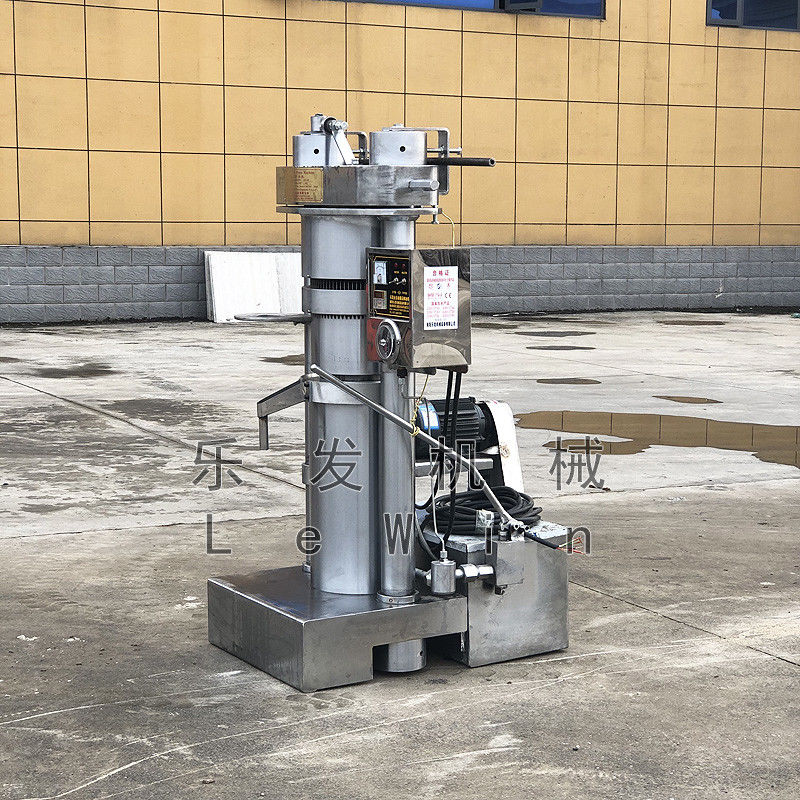

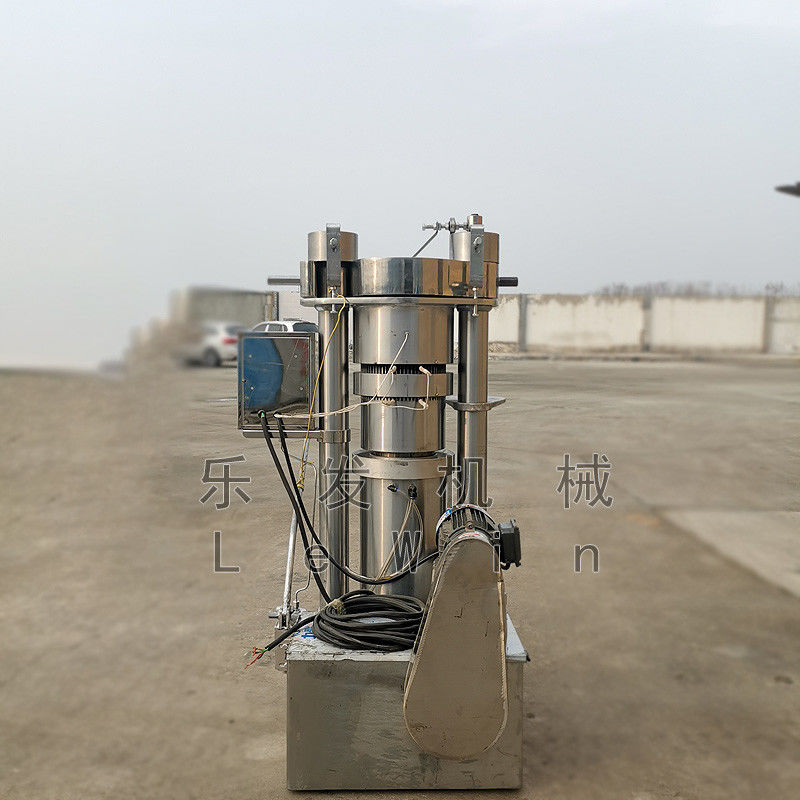

All of hydraulic models picture:
High oil rate reasons of our sesame oil presser:
Internal temperature control parts, in order to solve the problem of low oil yield in winter (the normal machine's oil yield will lower in winter).
The oil line is precise, it will filter the residue, you can get clean oil.
Our piston of sesame oil presser is solid it can provide stronger power to press raw material.
Our machine maximum working pressure is 60Mpa, is larger than other machines, hydraulic tank can provide stronger power to press raw material.
Why choose us?
Packing & Delivery
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.
