High oil rate screw making vegetable oil press machine without filter system
Production Introduction:
1. The series YZYX140CJGX spiral oil press produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc.
2. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
3. YZYX140CJGX has bigger deceleration box which operates smoothly and has long service.
Parameter:
| Model | YZYX140CJGX |
| Processing Capacity | >9-11t/24h |
| Oil content of dry cakes | ≤7.6% |
| Motor power | 18.5kw/20kw |
| Size | 2300*800*1420(mm) |
| Spiral axes rotate speed | 30-40(r/min) |
| Weight | 1800kg |
Application:
This spiral oil press machine is used to both cold press and hot press many materials. It can be used to press various kinds of oil corps, like rapeseed, cottonseed, soybean, peanut, sesame, olive, sunflower seeds, walnuts, almond, coconut, tea seed, etc.
The following picture show the referenced oil yield( Any other special materials, we can test and take video for your reference):
Working principle:
1. Transferred by the triangle belt, the electromotor drives the spiral shaft.
2. Oil plants being carried toward to the end of the machine by rotating squeeze spirals.
3. With the space between spirals and loops becoming smaller,the pressure in the chest is bigger.
4. During this process, oil plants are smashed and the tissue cells are destroyed, then oil is separated from oil plants.
5. After extracted, oil plants turns to be cakes containing low oil and is discharged in thin slices from the end.
Detail
Main advantages:
1. Gearbox --Cast iron bigger gearbox provide a strong foundation for operating smoothly and provide a long working life.
2. Feeder--carbon steel feeder.

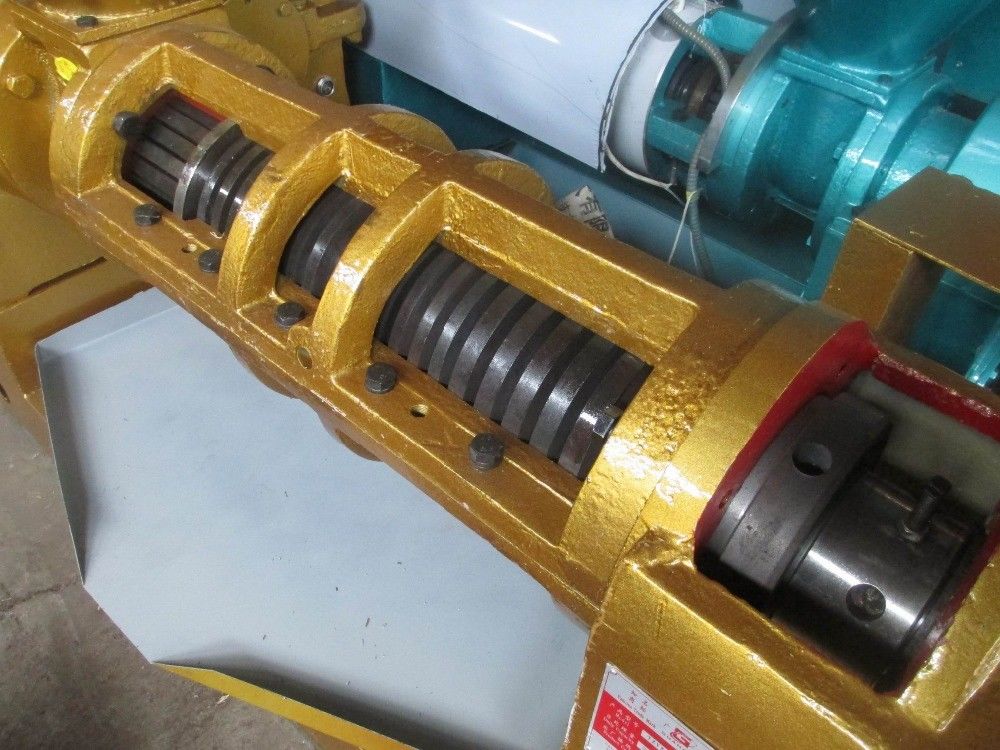

3. Squeeze cage- carbon steel lengthen squeeze cage (squeeze loop ,squeeze spiral can remove and changed after long time working).
Our machine pressed oil:
Who we are
We are Henan Lewin Industrila Development Co., Ltd which is a manufacturer of oil equipment in China.Our factory build 4 workshops for different parts of the machine, we design and process the key parts of the oil press machine ourselves, make sure the whole machine has very high quality and high oil yield. Our professional engineer keep on to update the technology of the machine, do our best to offer the best machine in oil pressing field. Our sales and service team offer 7x24 hours service, we can make different solution for customer's project, we promise to deal with all the problems within 24 hours.
Why choose our company:
1. We have professional design and produce team, offer you the high quality machines.
2. We have professional sales team to give you the best before-sales service.
3. We have professional delivery team.
4. We also have professional after- sales team to solve your problem in time.
5. Our machines are in stock.
6. We can produce 100-200 sets of oil machine at least to make sure offer you enough machines.
Our serfice
1.Offer the most suitable solution for you.
2. Visiting our factory.
3. Testing machine for you.
4. Always online to help you.
5. Delivery products immediately after receipt tje payment.
6. Change voltage according to your needs.
7. Operation manual, operation video and install video.
Package
Packaging:
1. Our oil press machine will be packaged by wooden case.
2. Customized.
Delivery time:
7-10 working days.
