Place of Origin:
Henan Province
Brand Name:
Lewin
Certification:
CE ISO
Model Number:
6YY-185

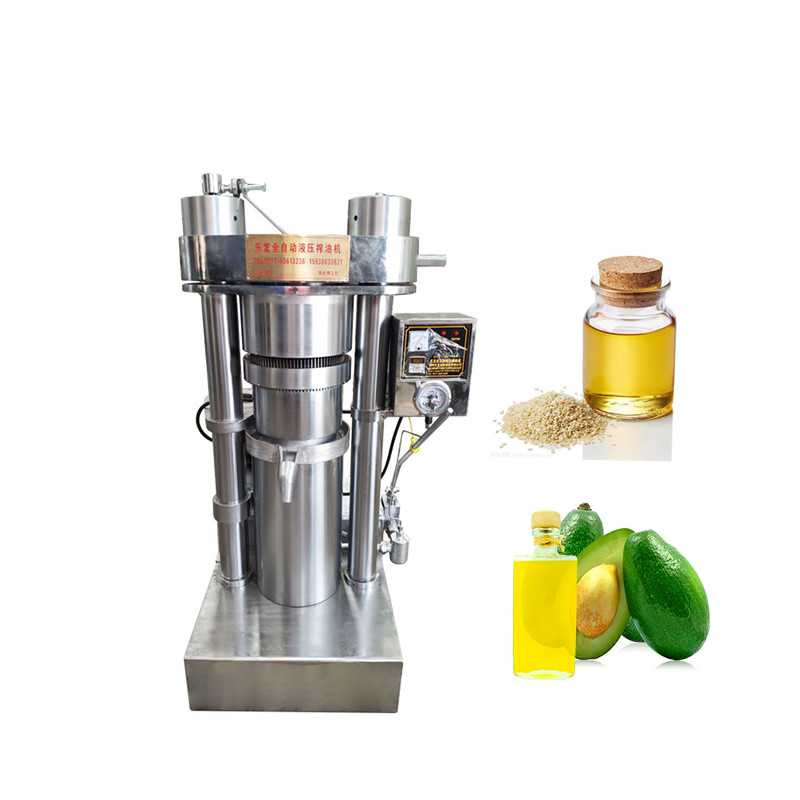

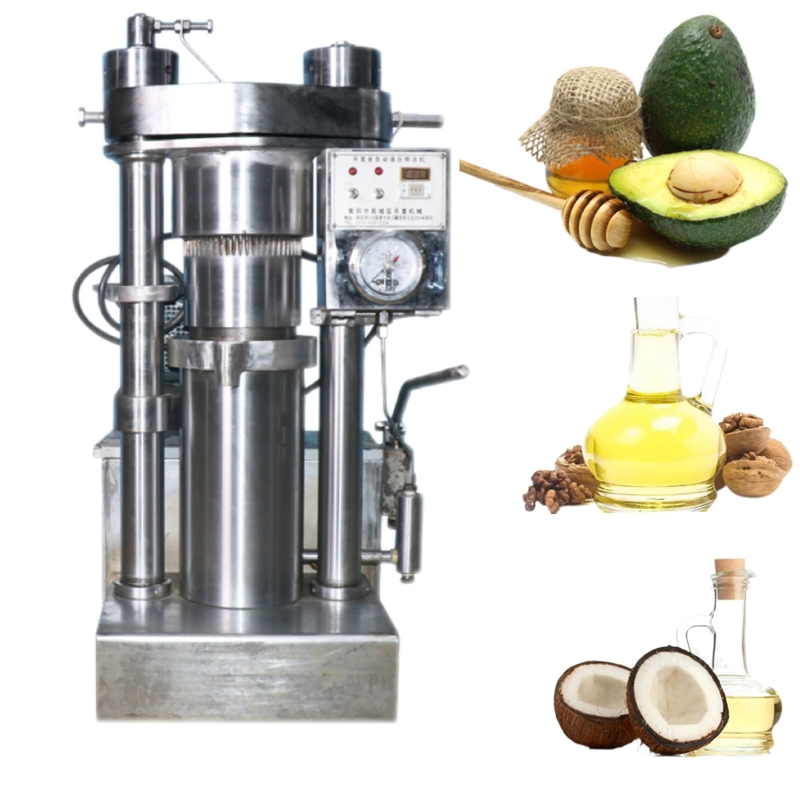

Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery
Operating priciple of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery:
The working principle of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery is that the when the oil material is put into the assembly of the press barrel, then it being driven up by the oil cylinder piston, oil will be outflow from the oil line of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery,and then pass the oil drip pan to the drum for oil storage.
Seeds application of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery:
1.It is suitable for direct processing of sesame, avocado, coconut, flaxseed, walnut and etc material.
2.If you want to process other special raw material, please cantact us to ensure.
Technical parameters of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery:
|
Model |
6YY-185 |
6YY-250 |
6YY-270 |
6YY-300 |
6YY-335 |
|
Weight |
550kg |
1060kg |
1230kg |
1600kg |
1750kg |
|
vacuum Power |
1.1kw |
1.1kw |
2.2kw |
2.2kw |
2.2kw |
|
3phase |
2.2kw |
2.2kw |
4.0kw |
4.8kw |
4.8kw |
|
Working pressure |
60MPa |
60MPa |
60MPa |
60MPa |
60MPa |
|
Capacity |
4kg/batch |
11kg/batch |
13.5kg/batch |
16kg/batch |
20kg/batch |
|
Dimension(mm) |
600*880*1150 |
710*950*1560 |
750*1010*1640 |
1000*1100*1660 |
1100*1240*1730 |
Oil seeds's oil rate parameter:
| Oil seeds | Oil rate |
| Sesame | 35%-45% |
| Avocado | 15%-30% |
| Coconut | 40%-58% |
| Flaxseeds | 25%-35% |
| Walnut | 40%-55% |
Product Information of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery
1.Our Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery has many advantages:operation is easy, oil rate is higher, rare to replace wearing parts.
2.This Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery is the most advanced equipment which can replace of the manual operation of the sesame oil.
3.This Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery can press at least 4 to 23 kilograms per batch, the time is about 4 to 15 minutes.
Advantages of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery:
1. We choose the famous brand steel for Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery, three times heating treatment and high manufacture technology to make sure it stronger enough.
2. Our QC department strictly to check the quality of all the parts for Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery, to make sure the all the parts work well.
3. We will test the Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery before shipping, make sure the machine work without any problem, let the customer get the high quality equipment.
4. 10 professional engineers work with our production department of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery, can offer the best solution for your project
Packing and shipping of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery
Package of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery: Wooden case
Shipping of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery: Generally ship by sea or land.
