Place of Origin:
Henan, China
Brand Name:
Lewin
Certification:
ISO,CE
Model Number:
YZYX10WK
Contact Us
Video
Video
|
Model
|
YZYX10WK
|
|
Processing capacity
|
4t/d
|
|
Oil content of dry cakes
|
≤7.8
|
|
Spiral axes rotate speed(r/min)
|
32-42
|
|
Motor power (KW)
|
5.5 |
|
Size (mm)
|
1200*550*1000 |
|
Weight (Kg)
|
545 |
Applicable oil plants and Business:

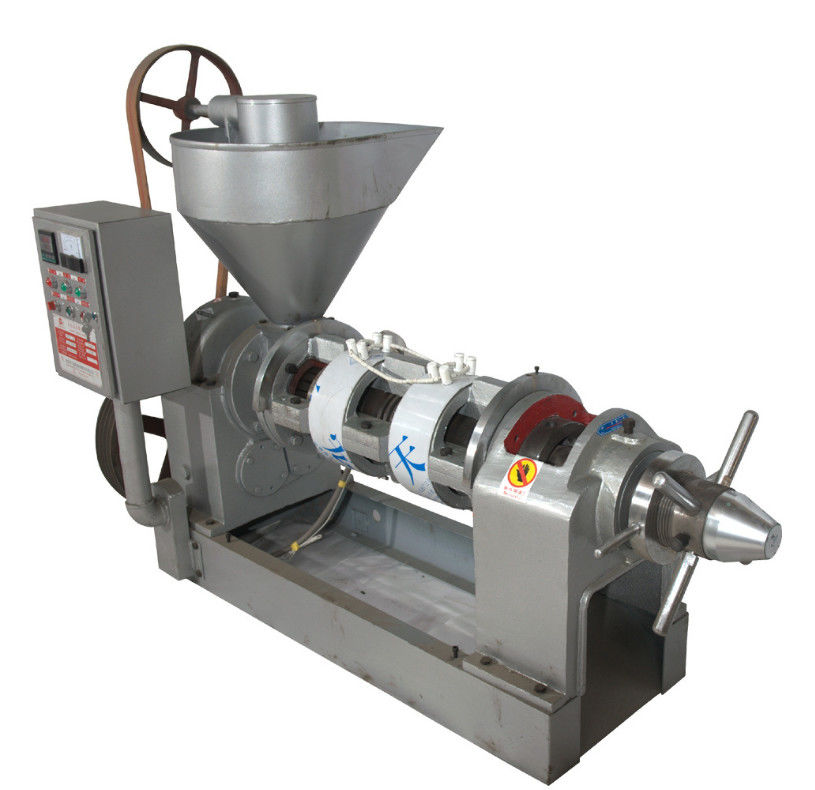

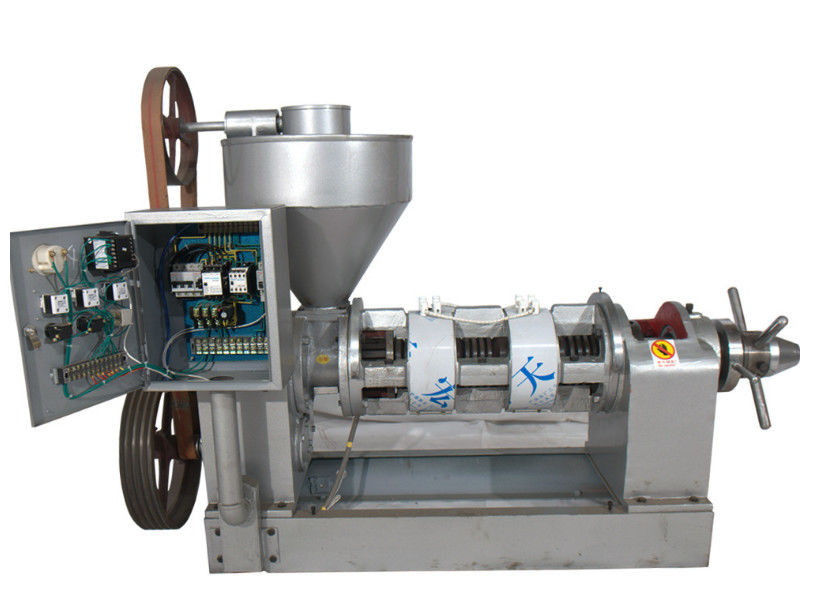

Manufacture single oil press machine screw oil extractor oil processing machine
1. More than 30 types of oil plants, such as rapeseed, cotton seed, soybean, shelled peanut, flax seed, sunflower seed and palm
kernel, etc.
2. Used in oil factory, oil mill and private oil production workshop.
3. Good both for pressing raw oil material and roasted oil material.
4. Performs well both in cold pressing and hot pressing.
5. The lower residue oil of the dry cake.
Working principle:
Under the combined effects of several forces, such as the pressure generated as the space in the squeeze chest becoming smaller,
the propulsion of the revolving spiral axes, the resistance of the multilateral arc curves on the squeeze loops, the extrusion &
friction between the oil plants, oil squeezed from the oil plants comes out from the squeeze bars and the grooves of the squeeze
loops. The residue is conveyed to the end of the press chest and discharges in thin strips of oil cake from the space between the
cake adjuster and the loop for cake out. Then the whole separation process of oil from oil plants is completed.
1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will not provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.
