Place of Origin:
Henan province, china
Brand Name:
Lewin
Certification:
CE ISO
Model Number:
6YY-230A
Contact Us

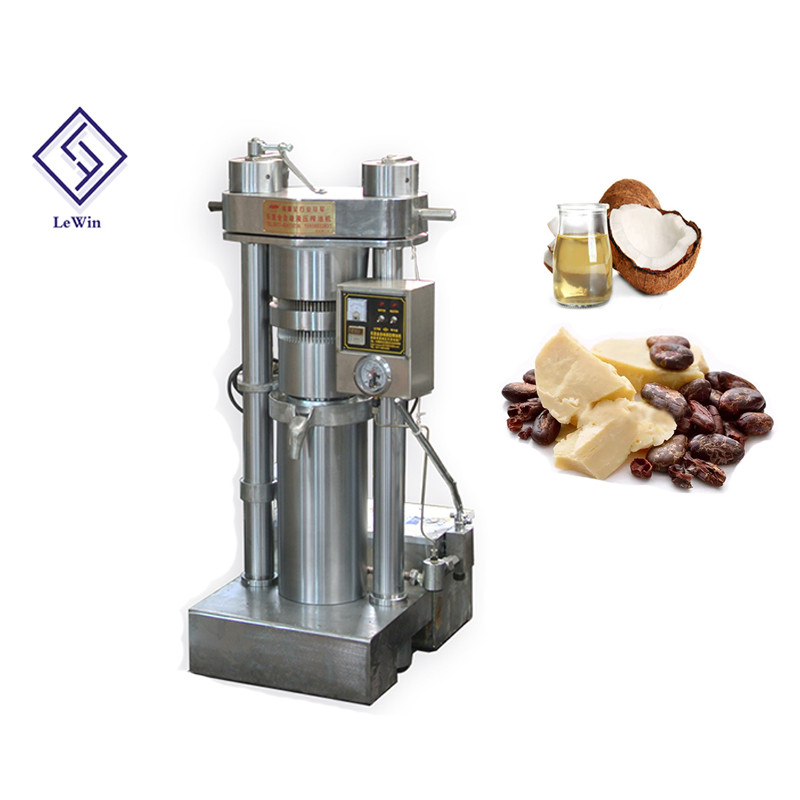

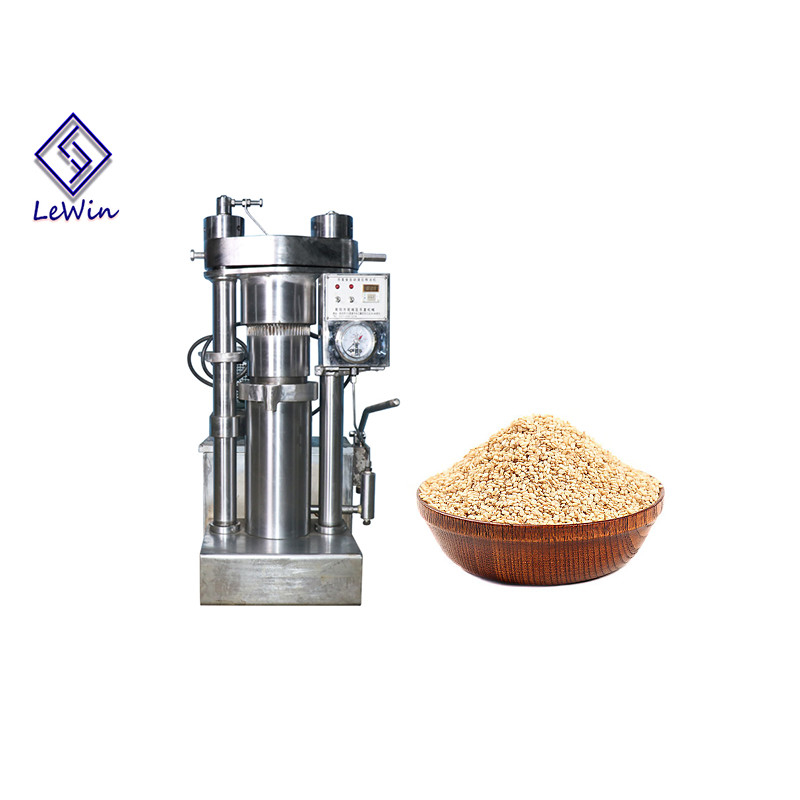

Cold press high pressure hydraulic oil press machie oil making equipment
Basis Information of Cold press high pressure hydraulic oil press machie oil making equipment
The main parts of the Cold press high pressure hydraulic oil press machie oil making equipment are piston, hydraulic cylinder, column, base, oil pump, material cylinder, automatic temperature control device.
The materials of Cold press high pressure hydraulic oil press machie oil making equipment are made of high-quality metal materials to improve machine performance and ensure the use of components.
Cold press high pressure hydraulic oil press machie oil making equipment is with Advanced design, reliable performance, easy operation and easy maintenance.
Working principle of Cold press high pressure hydraulic oil press machie oil making equipment
The working principle of Cold press high pressure hydraulic oil press machie oil making equipment is that the when the oil material is put into the material cylinder, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.
parameters of Cold press high pressure hydraulic oil press machie oil making equipment
| Model | 6YY-185 | 6YY-230A | 6YY-250 | 6YY-300 | 6YY-335 |
| Weight | 550kg | 924kg | 1070kg | 1600kg | 1750kg |
| vacuum Power | 1.1kw | 1.1kw | 1.1kw | 2.2kw | 2.2kw |
| 3phase | 2.2kw | 2.2kw | 2.2kw | 4.0kw | 4.8kw |
| Working pressure | 60MPa | 60MPa | 60MPa | 60MPa | 60MPa |
| Capacity | 4kg/batch | 8.5kg/batch | 11kg/batch | 16kg/batch | 20kg/batch |
| Dimension(mm) |
600*880*1150 |
670*950*1460
|
710*950*1560
|
1000*1100*1660
|
1100*1240*1730
|
Selling points of Cold press high pressure hydraulic oil press machie oil making equipment
Packing and shipping of Cold press high pressure hydraulic oil press machie oil making equipment
We have in enough stock and can arrange shipping for you as soon as possible.
